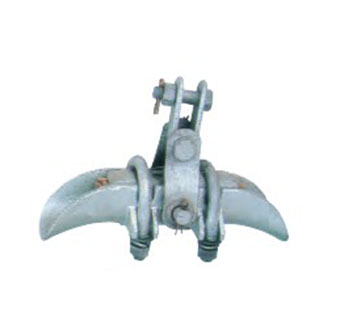

Turnnion Type Suspension Clamp
overview
Suspension clamp is an important fixed fitting used to suspend or support transmission wires and withstand vertical loads.
Specifications
Flame Retardant

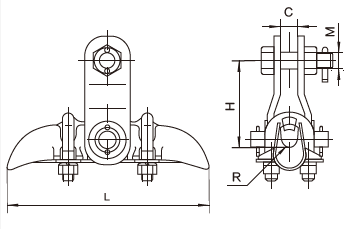

construction
parameter
| Catalog No. | Conductor Dia. (mm) | Dimensions (mm) | Rated Failure Load (kN) | Weight (kg) | ||||
| H | L | R | C | M | ||||
| XGU-1 | 5.0 – 7.0 | 82 | 180 | 4 | 18 | 16 | 40 | 1.4 |
| XGU-2 | 7.1 – 13.0 | 82 | 200 | 7 | 18 | 16 | 40 | 1.8 |
| XGU-3 | 13.1 – 21.0 | 102 | 220 | 11 | 18 | 16 | 40 | 2 |
| XGU-4 | 21.1 – 26.0 | 110 | 250 | 13.5 | 18 | 16 | 40 | 3 |
